Trailer (four-wheel steering)

Our Steer Trailers offer versatile customization to meet the most demanding transport requirements.The trailers wrap around corners and accurately track in the smallest footprint possible with virtually no drift, decreasing the amount of space needed for trailer paths.

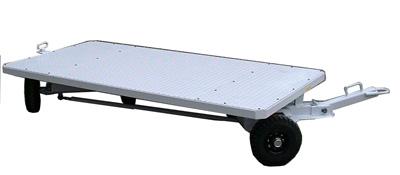

4WS_Trailer drawing 4WS_Trailer_ura
  TR4T Load capacity
kg(N)
Tire size Platform size Tred,wheel dimentions Drawbar
UT- D W L H LT LW LF LR AL AH A
TR4T-0912 400 2.50-4 208 900 1200 278 700 800 200 200 800 180 40
TR4T-0918 500 3.00-5 250 900 1800 330 700 1250 250 300 800 240 40
TR4T-1218 1000 3.50-5 302 1200 1800 392 900 1250 250 300 950 310 40
TR4T-1224 1000 3.50-5 302 1200 2400 407 900 1700 300 400 950 310 40
TR4T-1530 2000 4.00-8 605 1500 3000 536 1100 2100 400 500 1100 365 40
