Axle assembly

These assemblies consist of tough parts (solid tire with hubtype wheel, hevy duty axle shaft)
These products useful for undercarriage of trailer (used in warehouse, factory)
*used in premises only


specification

model tire type tire diameter capacity
(standards)
total length shaft thickness speed limit
UT2.50-4
axle assembly
UT2.50-4 208mm 200kg 1000mm 38mm less than
10km/h
UT3.00-5
axle assembly
UT3.00-5 250mm 400kg 1000mm 44mm less than
10km/h
UT3.50-5
axle assembly
UT3.50-5 302mm 500kg 1000mm 44mm less than
10km/h
UT4.00-8
axle assembly
UT4.00-8 406mm 1000kg 1000mm 50mm less than
10km/h
UT5.00-8
axle assembly
UT5.00-8 471mm 1500kg 1000mm 50mm less than
10km/h

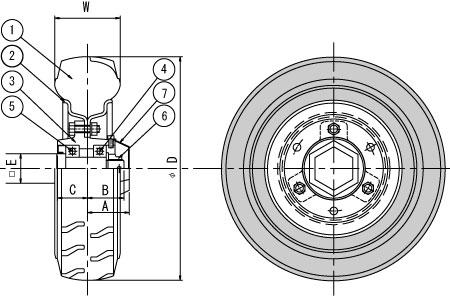

solid tire with hubtype wheel



specification

model tire size D W A B C E outer bearing inner bearing capacity Hub
UT2.50-4 2.50-4 208 60 *1 47.0 33.0 32 6004ZZ 6004ZZ 165 E
UT3.00-5 3.00-5 250 74 46.8 40.8 33.2 32 6205ZZ 6205ZZ 335 D
UT3.50-5 3.50-5 302 96 56.8 49.8 48.2 44 6205ZZ 6206ZZ 420 C
UT4.00-8 4.00-8 406 104 80.8 64.8 32.2 50 6206ZZ 6207ZZ 770 B
UT5.00-8 5.00-8 471 120 87.5 71.5 52.5 50/65 6207ZZ 6208ZZ 1140 A
*from D to E a unit is millimeter
