Pneumatic Wheel Caster

Pneumatic tires are inflated with air just like bicycle or car tires. When a pneumatic wheel goes over a bump or curb, the air compresses and acts as a shock absorber.

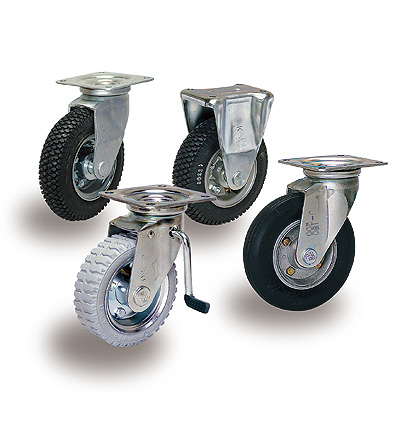

pneumatic wheel caster

Air filled pneumatic wheels provide a cushioned ride, shock absorption and quiet operation. Pneumatic casters are ideally suited for moving fragile or delicate cargo where caster overall height is not critical. Casters with pneumatic wheels are usually the best choice for use outdoors over rough surfaces ( i.e. gravel ) or on grass.

自在金具 Swivel Casters  J
Swivel Casters Load capacity kg  (N) Total height Plate dimensions Bolt hole spacing Bolt hole diameter Axle bore diameter offset
AIJ 6-2G 70 (680) 198 112/112 90/90 11 20 41
AIJ 6 1/2×2-4 70 (680) 230 140/140 112/112 11.5 20 58
AIJ 2.00-4 80 (780) 250 140/140 112/112 11.5 20 58
HC 2.50-4 PJ 85 (830) 292 160/160 125/125 14 20 71
HC 3.00-4 PJ 110 (1070) 308 160/160 125/125 14 20 71
HC 3.50-5 PJ 160 (1560) 368 175/175 140/140 14 25 71
    H' F1/F2 P1/P2 d D E

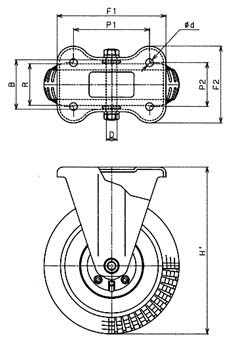

swivel casterFixed caster
固定金具Fixed Casters   K
Fixed Casters Load capacity kg  (N) Total height Platedimensions bolt hole spacing bolt hole diameter axle bore diameter
AIK 6-2G 70 (680) 198 140/85 100/56 11 20
AIK 6  1/2×2-4 70 (680) 230 151/102 112/63 11.5 20
AIK 2.00-4 80 (780) 250 151/102 112/63 11.5 20
HC 2.50-4 PK 85 (830) 292 200/140 140/80 14 20
HC 3.00-4 PK 110 (1070) 308 200/140 140/80 14 20
HC 3.50-5 PK 160 (1560) 368 200/140 160/90 14 25
    H' F1/F2 P1/P2 d D
